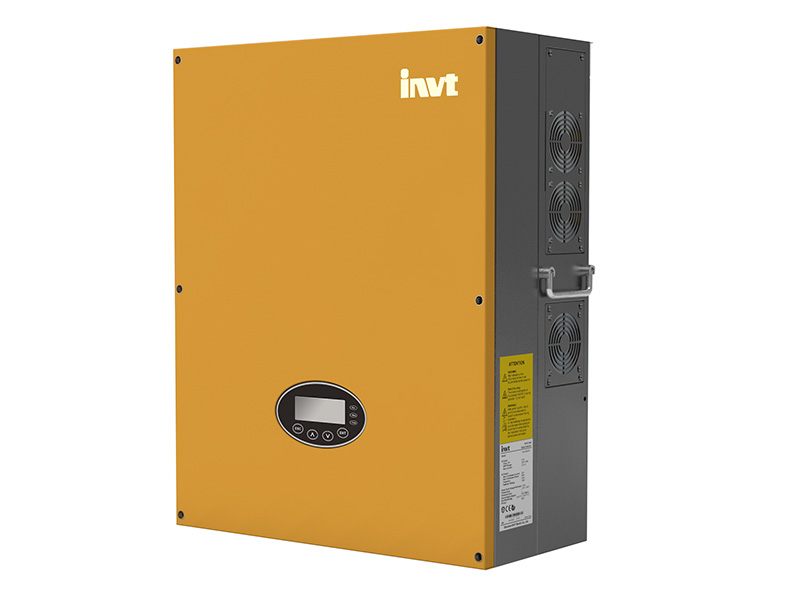

iMars BG Series BG(12-17)

iMars BG three-phase grid-tied solar inverters adopt the latest technologies combination of T
type three level topology and SVPWM, providing flexible system configuration and monitoring
solutions for household, commercial and power plant systems

Categories: , , Tags: , ,

Description

Features

  • Dual MPPTs work independently and allow unbalanced input power. One MPPT maximum input is up to 60%
    of Max.DC power.
  • High efficiency and stable performance at entire input voltage and output power range. Max.
    efficiency is up to 98.3%.
  • Wide input voltage range gives more possibilities for accepting different string configuration and
    different type of PV modules.
  • Bus capacitors consist of advanced film capacitors, designed with the latest thermal simulation
    technology for longer lifespan.
  • Integrated intelligent DC combiner and surge protection improve system flexibility and lower the
    cost.
  • 5V 200mA auxiliary DC power interface is optional for system expansion. AC output power is
    adjustable between 1-100%.
  • Reactive power control and power factor adjustable: 0.8 leading ~ 0.8 lagging.
  • RS485, Ethernet, WIFI communication modes are optional for realizing multiple monitoring solutions via PC, mobile phones, internet etc. platforms.
