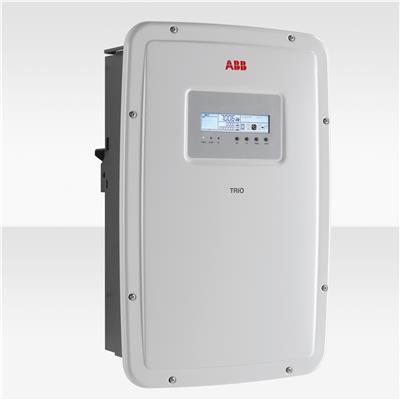

TRIO-5.8/7.5/8.5-TL-OUTD 5.8 to 8.5 kW

The all-in-one residential threephase TRIO-5.8, 7.5 and 8.5 kW inverters deliver performance, ease of use and installation, monitoring and control. With their 98% peak efficiency and wide input voltage range, the residential TRIO inverter means flexible installations and powerful output.

Categories: , , Tags: ,

Description

Features

  • • Three-phase bridge topology for DC/ AC output converter
  • Transformerless topology
  • Two independent MPPT channels for TRIO-7.5/8.5 allow optimal energy harvesting from two subarrays oriented in different directions (one MPPT channel for TRIO-5.8)
  • Flat efficiency curves ensure high efficiency at all output levels enabling consistent and stable performance across the entire input voltage and output power range
  • Wide input voltage range
  • Remote inverter upgrade
  • Reactive power management
  • DC switch version available (-S)
  • Natural convection cooling for maximum reliability
  • Outdoor enclosure for unrestricted use under any environmental conditions (IP65)
  • Sliding cover for the easiest installation and maintenance
  • Data logger and smart grid functionalities integrated on expansion cards: – PMU expansion card option, with external sensor inputs for monitoring environmental conditions and additional RS-485 for Modbus protocol – Ethernet expansion card option with integrated web server and remote monitoring capability via web portal (Modbus/TCP supported)
  • Availability of auxiliary DC output voltage (24 V, 100 mA
Download Datasheet
